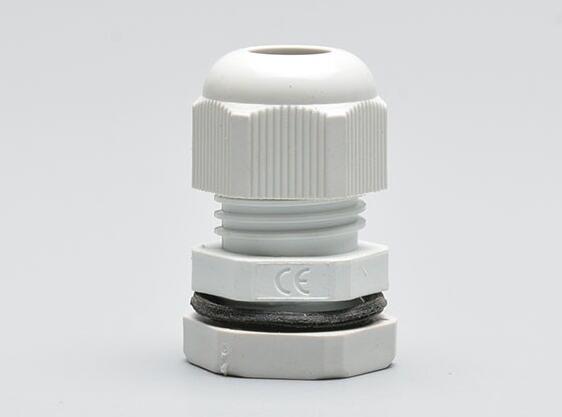

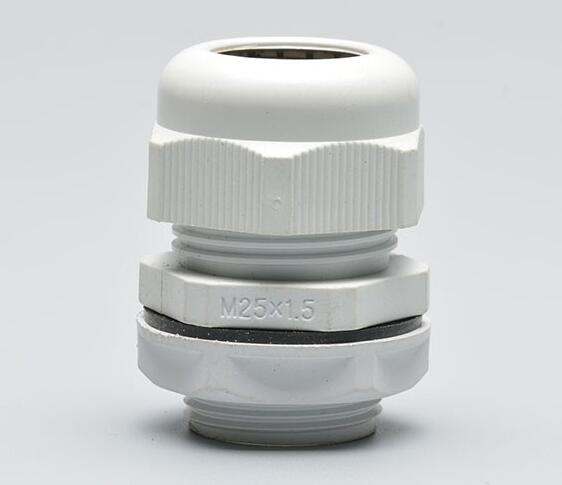

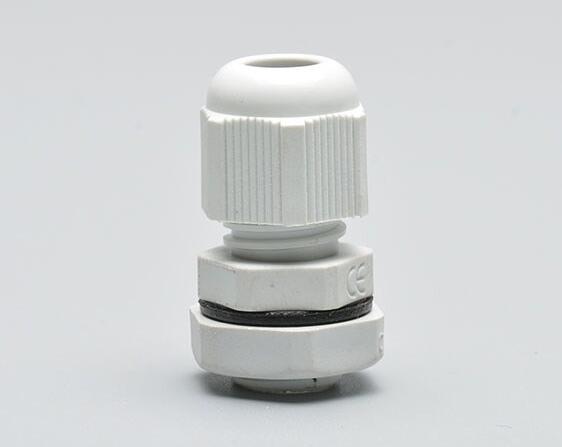

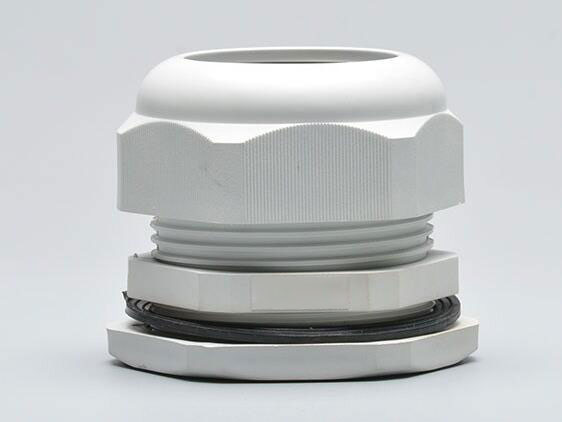

防水接頭優勢：接線尺寸范圍大，抗拉效果出眾，耐酸堿腐蝕，防塵防水效果出眾，防護等級最高可達IP68,在市場里擁有良好的口碑。
防水接頭應用領域：電力設備，船舶機械，自動化設備，戶外燈接線盒，工程機械，傳感器。
根據電纜大小選擇電纜防水接頭的尺寸，根據國家標準，PG型防水接頭尺寸尺寸規格表如下：
| PG防水接頭尺寸 | ||||||
| 產品型號 | 螺紋規格尺寸 | 適用電纜 | 螺紋外徑 | 螺紋長度 | 扳手直徑 | 包裝 |
| Model | Thread size | Cable Range (mm) | Thread O.D L2(mm) | Thread Lenghth (mm) | Spanner Size A&E(mm） | Qty/bag |
| PG7 | PG7 | 3-6.5 | 12.5 | 9 | 18/16 | 100 |
| PG7 | PG7 | 2-5 | 12.5 | 9 | 18/16 | 100 |
| PG9 | PG9 | 4-8 | 15.2 | 9 | 22/19 | 100 |
|
|
||||||
| PG9 | PG9 | 2-6 | 15.2 | 9 | 22/19 | 100 |
| PG11 | PG11 | 5-10 | 18.6 | 9 | 24/22 | 100 |
| PG11 | PG11 | 3-7 | 18.6 | 9 | 24/22 | 100 |
| PG13.5 | PG13.5 | 6-11 | 20.4 | 10 | 27/24 | 100 |
| PG13.5 | PG13.5 | 5-9 | 20.4 | 10 | 27/24 | 100 |
|
|
||||||
| PG16 | PG16 | 10-13 | 22.5 | 10 | 30/27 | 100 |
| PG16 | PG16 | 7-12 | 22.5 | 10 | 30/27 | 100 |
| PG19 | PG19 | 12-15 | 24 | 10 | 30/28 | 100 |
| PG19 | PG19 | 10-12 | 24 | 10 | 30/28 | 100 |
| PG21 | PG21 | 13-18 | 28.3 | 12 | 35/33 | 100 |
| PG21 | PG21 | 9-16 | 28.3 | 12 | 35/33 | 100 |
| PG25 | PG25 | 16-21 | 30 | 12 | 37/35 | 50 |
| PG25 | PG25 | 13-18 | 30 | 12 | 37/35 | 50 |
| PG29 | PG29 | 18-25 | 37 | 12 | 45/42 | 50 |
|
|
||||||
| PG29 | PG29 | 13-20 | 37 | 12 | 45/42 | 50 |
| PG36 | PG36 | 22-32 | 47 | 15 | 58/52 | 20 |
| PG36 | PG36 | 20-26 | 47 | 15 | 58/52 | 20 |
| PG42 | PG42 | 32-38 | 54 | 18 | 62/58 | 20 |
|
|
||||||
| PG42 | PG42 | 25-31 | 54 | 18 | 62/58 | 20 |
| PG48 | PG48 | 37-44 | 59.3 | 18 | 70/64 | 20 |
| PG48 | PG48 | 29-35 | 59.3 | 18 | 70/64 | 20 |
| PG63 | PG63 | 42-50 | 71 | 30 | 83/77 | 10 |
| PG63 | PG63 | 32-40 | 71 | 30 | 83/77 | 10 |
